GSF Kawerna

GSF Kawerna constitutes a Group of Storage Facilities comprising CUGS Mogilno and CUGS Kosakowo.

The ID numbers of exit point from the and entry point to the transmission system for GIM Kawerna shall be as follows:

Exit point

Point name Gim Kawerna zatłaczanie (injection)
Point ID 108001
Entry point

Point name Gim Kawerna pobór (withdrawal)
Point ID 178001

The maximum technical capacity of GSF Kawerna the season 2023/2024.

Group of storage facilities Storage Working volume Max. injection capacity Max. withdrawal capacity
million m3 GWh million m3/day GWh/day million m3/day GWh/day
GSF Kawerna CUGS Mogilno 580,92 6 471,4 9,60 106,9 18,00 200,5
CUGS Kosakowo 296,80 3 309,3 2,40 26,8 9,60 107,0
Total 877,72 9780,7 12,00 133,7 27,60 307,5

The maximum technical capacity of GSF Kawerna the season 2023/2024.

Group of storage facilities Storage Working volume Max. injection capacity Max. withdrawal capacity
million m3 GWh million m3/day GWh/day million m3/day GWh/day
GSF Kawerna CUGS Mogilno 580,92 6 471,4 9,60 106,9 18,00 200,5
CUGS Kosakowo 295,20 3 291,46 2,40 26,8 9,60 107,0
Total 876,12 9762,86 12,00 133,7 27,60 307,5

The maximum technical capacity of GSF Kawerna the season 2022/2023.

Group of storage facilities Storage Working volume Max. injection capacity Max. withdrawal capacity
million m3 GWh million m3/day GWh/day million m3/day GWh/day
GSF Kawerna CUGS Mogilno 580,92 6 471,4 9,60 106,9 18,00 200,5
CUGS Kosakowo 299,70 3 341,7 2,40 26,8 9,60 107,0
Total 880,62 9 813,1 12,00 133,7 27,60 307,5
The maximum capacity of the storage facilities in the season 2023/2024.

Group of storage facilities
GSF Kawerna
Storage
CUGS Mogilno
Working volume
580,92 mln m3
6 471,4 GWh
Max. injection capacity
9,60 mln m3/day
106,9 GWH/day
Max. withdrawal capacity
18,00 mln m3/day
200,5 GWH/day
Group of storage facilities
GSF Kawerna
Storage
CUGS Kosakowo
Working volume
296,80 mln m3
3 309,3 GWh
Max. injection capacity
2,40 mln m3/day
26,8 GWh/day
Max. withdrawal capacity
9,60 mln m3/day
107,0 GWh/day

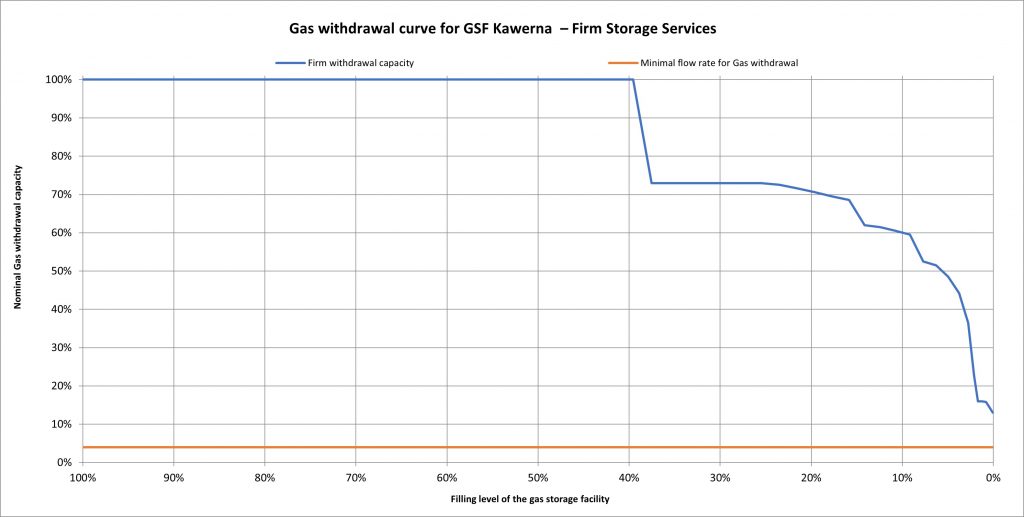

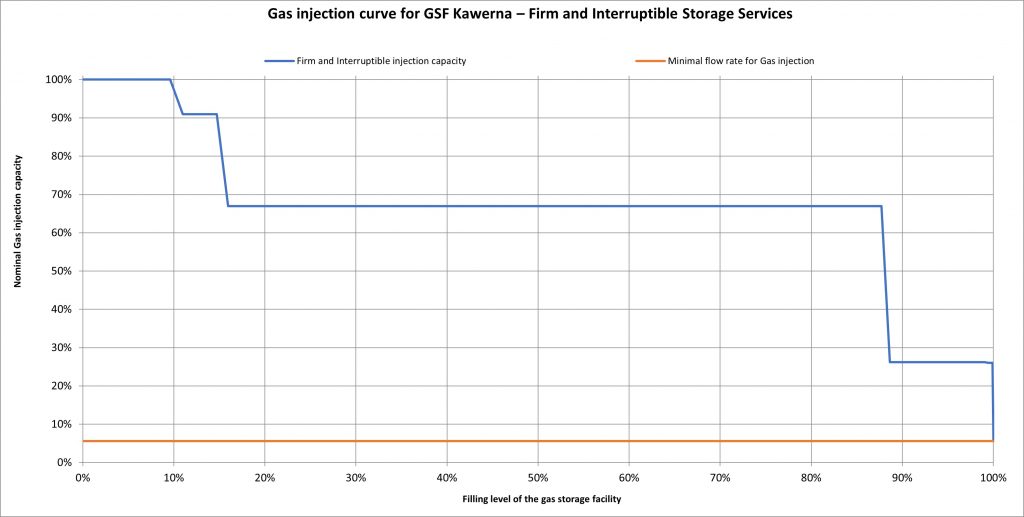

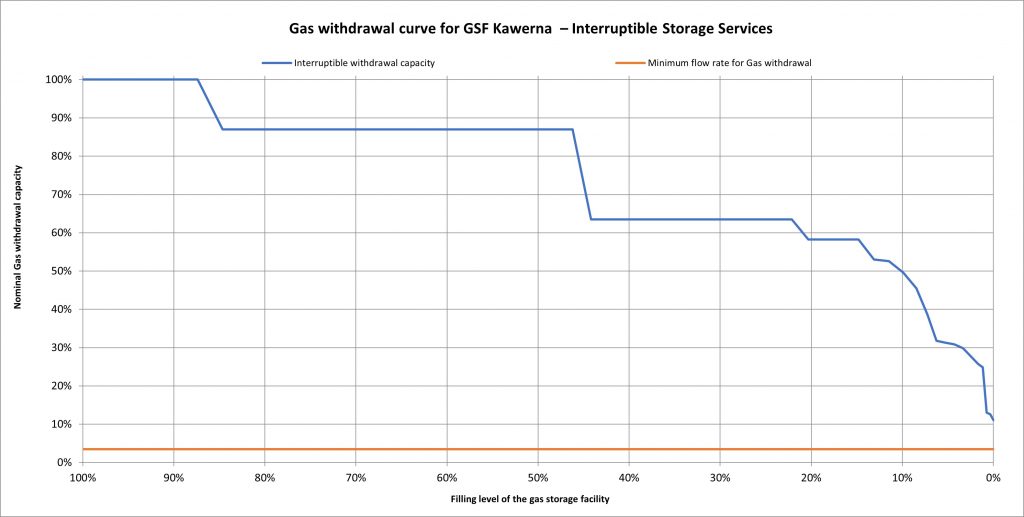

Withdrawal and injection curves of GSF Kawerna effective from 6:00 a.m. on April 15, 2024 until 6:00 on October 1, 2024.

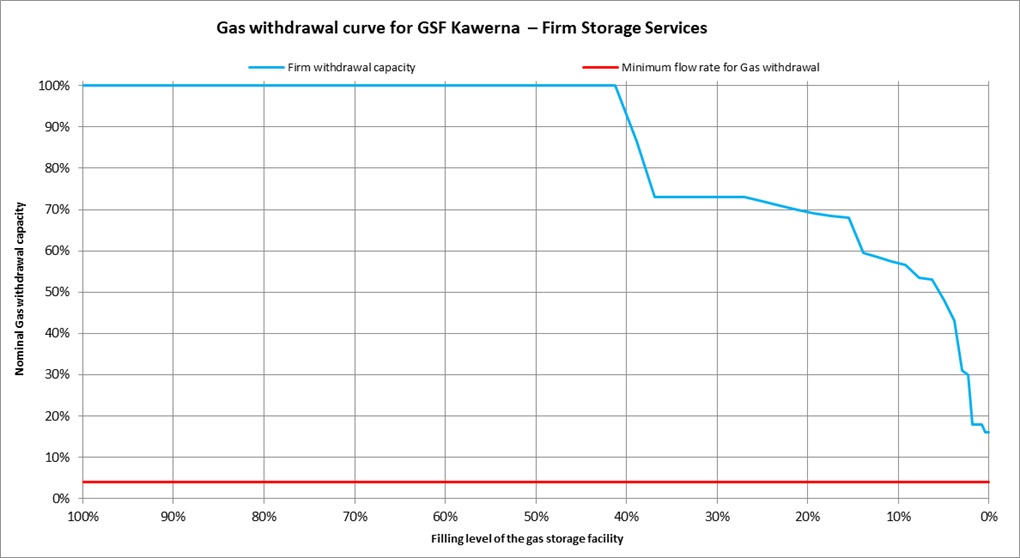

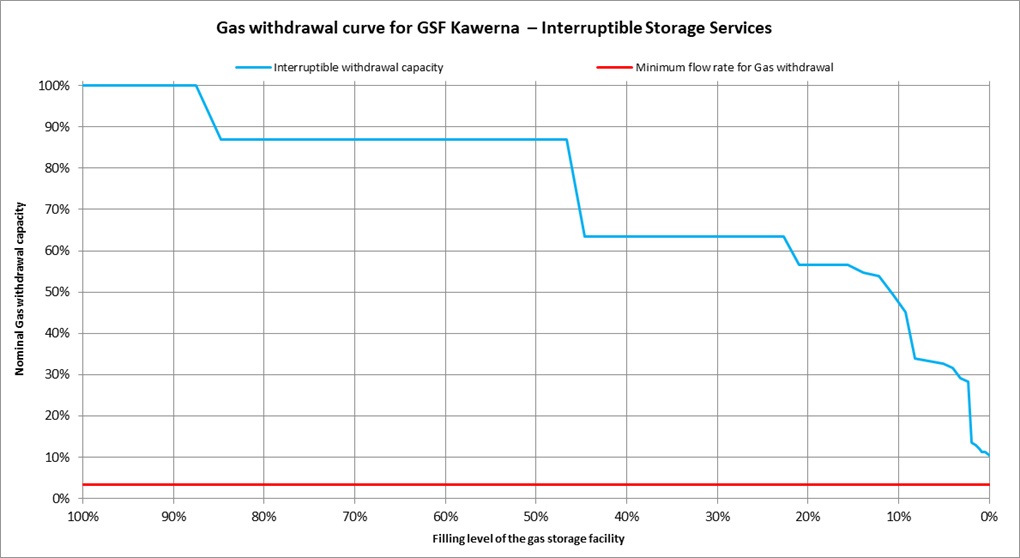

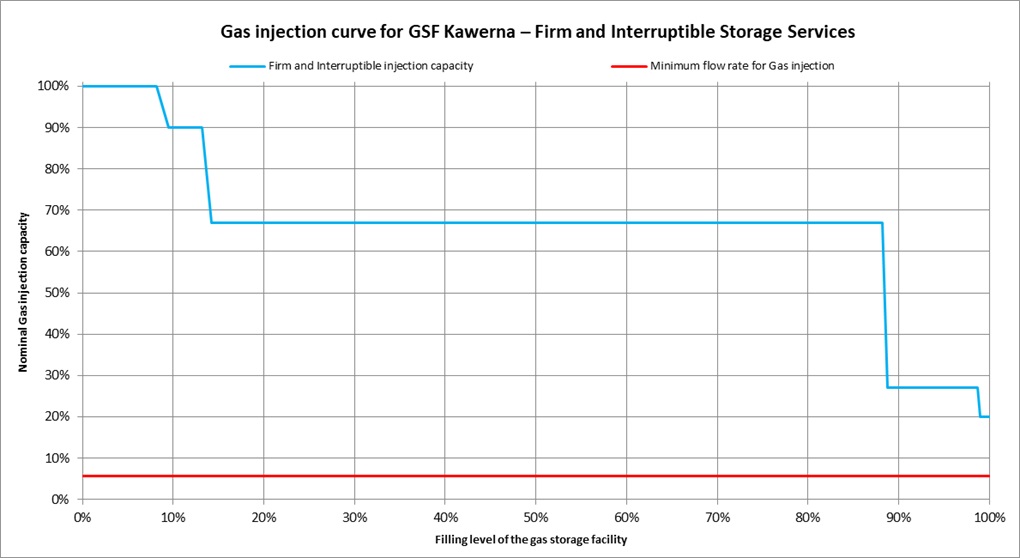

Withdrawal and injection curves of GSF Kawerna until 6:00 a.m. on April 15, 2024.
